Vector Data Analysis

Description of Modules

The Vector Menu is a where operations on vector data reside. Here, point data or vector data are imported and displayed. If another menu requires vector data, then it may be imported through this menu.

Vector menu.

• Import Vector Data
• Import XYZ Data
• Import Voxel Data
• Column Select
• Text File Split
• Vector Equation Editor
• Cut Points using Polygon
• Reproject Vector Data
• Dataset Gridding
• Structural Complexity

Context Menu

All vector modules, once activated (module will be green) have a context menu which allows the display of the data. The context menu is accessed by right clicking on the module.

The vector context menus are available for vector data that have been imported and for modules which operate on vector data and have raster or vector output data. The menu content for the Vector Import Module depends on the type of data (polygon, polyline, point) that was imported. Similarly, for functions performed on vector data, the context menu will depend on the type of data produced by the function. If the output data is still in vector format the context menu will depend on the type of vector data. In the case of a raster output the context menu will contain most of the items pertaining to raster data, and additional items applicable to the input vector data.

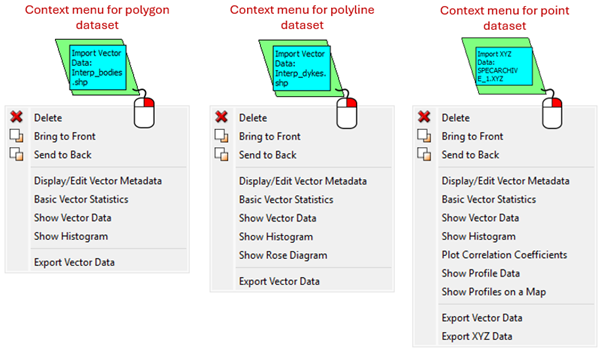

Context menus for the vector import module and vector outputs.

• Display/Edit Vector Metadata
• Basic Vector Statistics
• Show Vector Data
• Show Histogram
• Show Rose Diagrams
• Plot Correlation Coefficients
• Show Profile Data
• Show Profiles on a Map
• Display Voxel Data
• Export Vector Data
• Export XYZ Data
• Export Voxel Data
